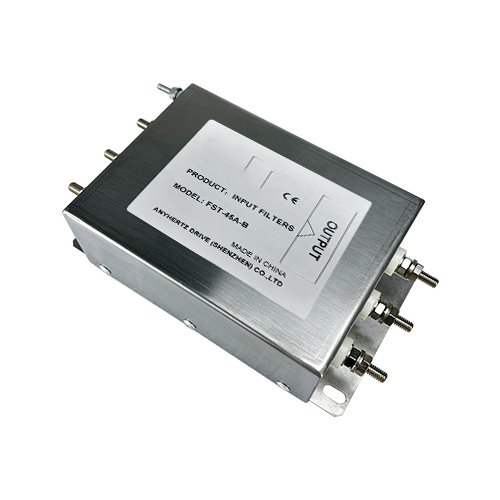

LC series input/output filters
The input (output) filter is a passive low-voltage filter that can effectively suppress conducted interference propagating along power lines and greatly reduce radio frequency interference generated by electronic devices. The materials and components used have been tested in the worst environments and do not require fans. It is installed on-site and easy to operate, suitable for all brands of frequency converters.
Power range
5A~1600A
Input voltage
AC 220/380/440V
Product Overview
Application scope
-
Textile
-
Paper Making
-
Sand Making
-
Machine Tools
-
Packaging
-
Food
-
Fans
-
Pumps
Features
- Rated current 5A-1600A optional
- Bolt and terminal block lead out methods are optional (copper bar lead out method for 300A and above)

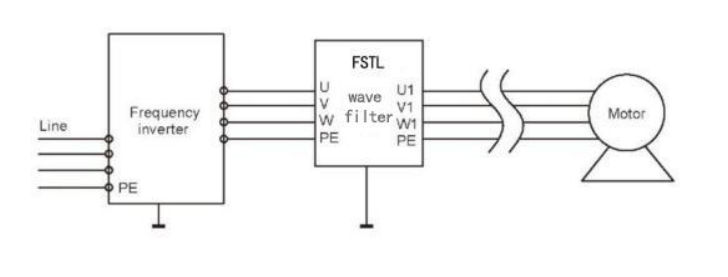

- The LCL series is specially designed based on the frequency domain characteristics of the output end interfering with the load during the operation of the frequency converter
- Effectively solve the abnormal conditions such as load heating and whistling that are easily generated during long- distance transmission of frequency conversion devices, and use them in conjunction with reactors for better results
- For special customer groups, selecting terminal board products can ensure the safety of their products in special situations
- Above 300A, copper bar type lead out method is adopted, which is more consistent with international design standards, making customer connections convenient and safe
- The normal operation of electronic equipment that can effectively ensure the turnover of frequency converters and solve the problem of significant interference from frequency converters
- Adopting a three-level filtering design, special magnetic materials can ensure high impedance characteristics over a wide frequency range
- 660VAC/690VAC/1140VAC (included) and above high working voltage products are optional
Technical Specifications
| Rated voltage | AC 220/380/440V |
| working frequency | 50/60Hz |
| Test voltage | P-E:2700VDC P-P:2250VDC |
| Rated current | 5-1600A |
| working temperature | -25~+85℃ |
Selection of frequency converters and filters
| Model no. | Input Filter | Output Filter |
| ***-0R7G/1R5PT4 | LC5A-B | LCL-5A-B |
| ***-1R5G/2R2PT4 | LC5A-B | LCL-5A-B |
| ***-2R2G/4R0PT4 | LC8A-B | LCL-8A-B |
| ***-4R0G/5R5PT4 | LC10A-B | LCL-10A-B |
| ***-5R5G/7R5PT4 | LC16A-B | LCL-16A-B |
| ***-7R5G/011PT4 | LC16A-B | LCL-16A-B |
| ***-011G/015PT4 | LC30A-B | LCL-30A-B |
| ***-015G/018PT4 | LC30A-B | LCL-30A-B |
| ***-018G/022PT4 | LC45A-B | LCL-45A-B |
| ***-022G/030PT4 | LC45A-B | LCL-45A-B |
| ***-030G/037PT4 | LC60A-B | LCL-60A-B |
| ***-037G/045PT4 | LC75A-B | LCL-75A-B |
| ***-045G/055PT4 | LP300QA-B | LCL-100A-B |
| ***-055G/075PT4 | LC120A-B | LCL-120A-B |
| ***-075G/090PT4 | LC150A-B | LCL-150A-B |
| ***-090G/110PT4 | LC200A-B | LCL-200A-B |
| ***-110G/132PT4 | LC250A-B | LCL-250A-B |
| ***-132G/160PT4 | LC300A-B | LCL-300A-B |
| ***-160G/185PT4 | LC420A-B | LCL-420A-B |
| ***-185G/200PT4 | LC420A-B | LCL-420A-B |
| ***-200G/220PT4 | LC420A-B | LCL-420A-B |
| ***-220G/245PT4 | LC420A-B | LCL-420A-B |
| ***-245G/280PT4 | LC640A-B | LCL-500A-B |
| ***-280G/315PT4 | LC600A-B | LCL-600A-B |
| ***-315G/355PT4 | LC600A-B | LCL-600A-B |
| ***-355G/400PT4 | LC800A-B | LCL-800A-B |
| ***-400G/450PT4C | LC800A-B | LCL-800A-B |
| ***-450G/500PT4C | LP300Q0A-B | LCL-1000A-B |
| ***-500G/560PT4C | LP300Q0A-B | LCL-1000A-B |
| ***-560G/630PT4C | LC1200A-B | LCL-1200A-B |
| ***-630GT4C | LC1200A-B | LCL-1200A-B |
Product Parameters
| Mode no. |
Current [A] |
Power [KW] |
Size [mm] |
Weight [Kg] |
| Input Filters | ||||
| LC5A-B | 5 | 0.75/1.5 | 146*93*56 | 1/1.15 |
| LC8A-B | 8 | 2.2/3.7 | 146*93*56 | 1.15/1.2 |
| LC10A-B | 10 | 4 | 146*93*56 | 1.18/1.225 |
| LC16A-B | 16 | 5.5/7.5 | 186*108*60 | 1.2/1.25 |
| LC30A-B | 30 | 11/15 | 194*108*60 | 1.7/1.75 |
| LC45A-B | 45 | 18.5/22 | 244*120*80 | 2.75/2.85 |
| LC60A-B | 60 | 30 | 244*120*80 | 3.25/3.45 |
| LC75A-B | 75 | 37 | 323*170*107 | 6.25/6.45 |
| LC100A-B | 100 | 45 | 323*170*107 | 6.35/6.5 |
| LC120A-B | 120 | 55 | 323*170*107 | 6.5/6.7 |
| LC150A-B | 150 | 75 | 380*180*112 | 8.35/8.55 |
| LC200A-B | 200 | 90 | 380*180*112 | 8.5/8.655 |
| LC250A-B | 250 | 110 | 380*180*112 | 8.9/9.15 |
| LC300A-B | 300 | 132/150 | 394*260*115 | 11.5/12 |
| LC420A-B | 420 | 160/220 | 394*260*115 | 111.8/12.5 |
| LC500A-B | 500 | 250/260 | 445*257*162 | 18/18.5 |
| LC600A-B | 600 | 280/315 | 445*257*162 | 18.5/19 |
| Output Filters | ||||
| LCL-5A-B | 5 | 0.75/1.5 | 146*93*56 | 1/1.15 |
| LCL-8A-B | 8 | 2.2/3.7 | 146*93*56 | 1.1/1.22 |
| LCL-10A-B | 10 | 4 | 146*93*56 | 1.12/1.24 |
| LCL-16A-B | 16 | 5.5/7.5 | 146*93*56 | 1.42/1.45 |
| LCL-30A-B | 30 | 11/15 | 194*108*60 | 1.65/1.75 |
| LCL-45A-B | 45 | 18.5/22 | 244*120*80 | 2.61/2.7 |
| LCL-60A-B | 60 | 30 | 244*120*80 | 3.18/3.28 |
| LCL-75A-B | 75 | 37 | 244*120*80 | 6.1/6.15 |
| LCL-100A-B | 100 | 45 | 323*170*107 | 6.2/6.35 |
| LCL-120A-B | 120 | 55 | 323*170*107 | 6.45/6.52 |
| LCL-150A-B | 150 | 75 | 323*170*107 | 8.2/8.5 |
| LCL-200A-B | 200 | 90 | 380*180*112 | 8.5/8.655 |
| LCL-250A-B | 250 | 110 | 380*180*112 | 8.8/9 |
| LCL-300A-B | 300 | 132/150 | 394*260*115 | 8.8/9 |
| LCL-420A-B | 420 | 160/220 | 394*260*115 | 11.3/11.5 |
| LCL-500A-B | 500 | 250/260 | 445*257*162 | 17.5/18 |
| LCL-600A-B | 600 | 280/315 | 445*257*162 | 18.5/18.8 |
